Home>>SPEAKER CABINET>>Wooden Speaker Cabinet

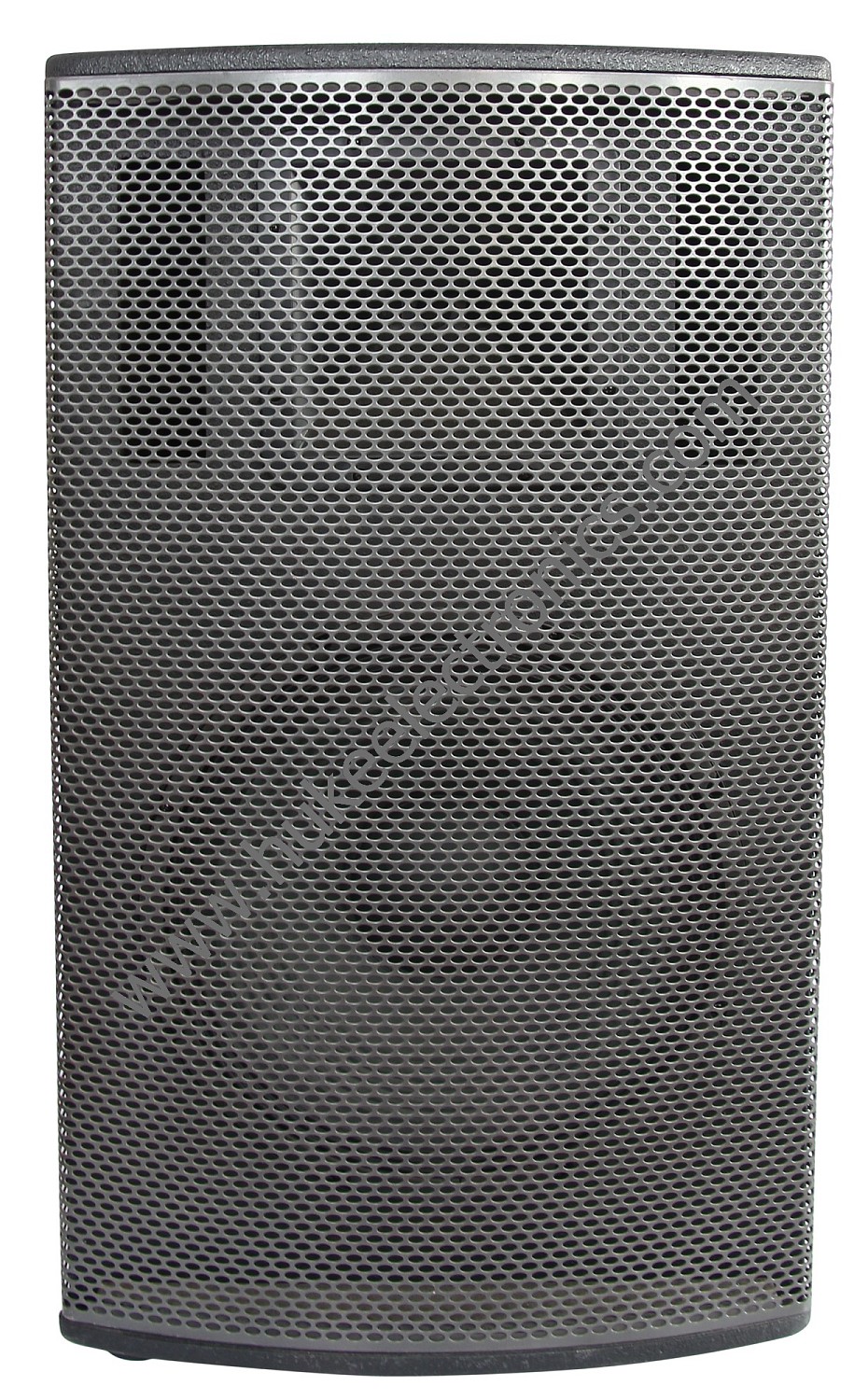

WR Serie
Features :
WR serie is two-way speaker system based on a heavy duty woofer and a titanium compression driver mounted on a constant-directivity horn
MDF wood with paing finish trapezoidal enclosure with stand-mount cup facilitates portable use for excellent live music or speech sound reinforcement, as well as music playback.
Silver powder-coated steel grille provides driver protection
| Specifications | |||
| Model: | WR-12 | WR-15 | |
| System type | 12"2 Way | 15"2 Way | |
| Power handling | 250W ,500W PEAK | 300W ,600W PEAK | |
| LF woofer | 12"with 2.5" voice coil | 15"with 3" voice coil | |
| HF driver | 1.35" Titanium | 1.75" Titanium | |
| Frequency response | 55-20 KHz | 45-20 KHz | |
| Impedance | 8 Ohm | 8 Ohm | |
| Sensitivity | 96dB | 98dB | |
| Connectors | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack | |
| Dimension(W*L*H) | 40*39*66 CM | 45*48*86 CM | |
| Weight: | 19.5 KGS | 25 KGS | |
| Model: | WR-215 | WR-18S | |
| System type | Dual 15"2 Way | 18" Subwoofer | |
| Power handling | 600W ,1200W PEAK | 500W ,1000W PEAK | |
| LF woofer | 2*15"with 3" voice coil | 18" with 4" voice coil | |
| HF driver | 1.75" Titanium | ||
| Frequency response | 40-20 KHz | 38-700 Hz | |
| Impedance | 4 Ohm | 8 Ohm | |
| Sensitivity | 99dB | 100dB | |
| Connectors | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack | |
| Dimension(W*L*H) | 45*44*132 CM | 66*58*73 CM | |
| Weight: | 42 KGS | 45 KGS |
