Home>>SPEAKER CABINET>>Wooden Speaker Cabinet

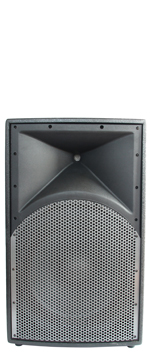

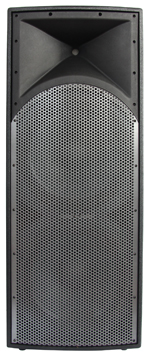

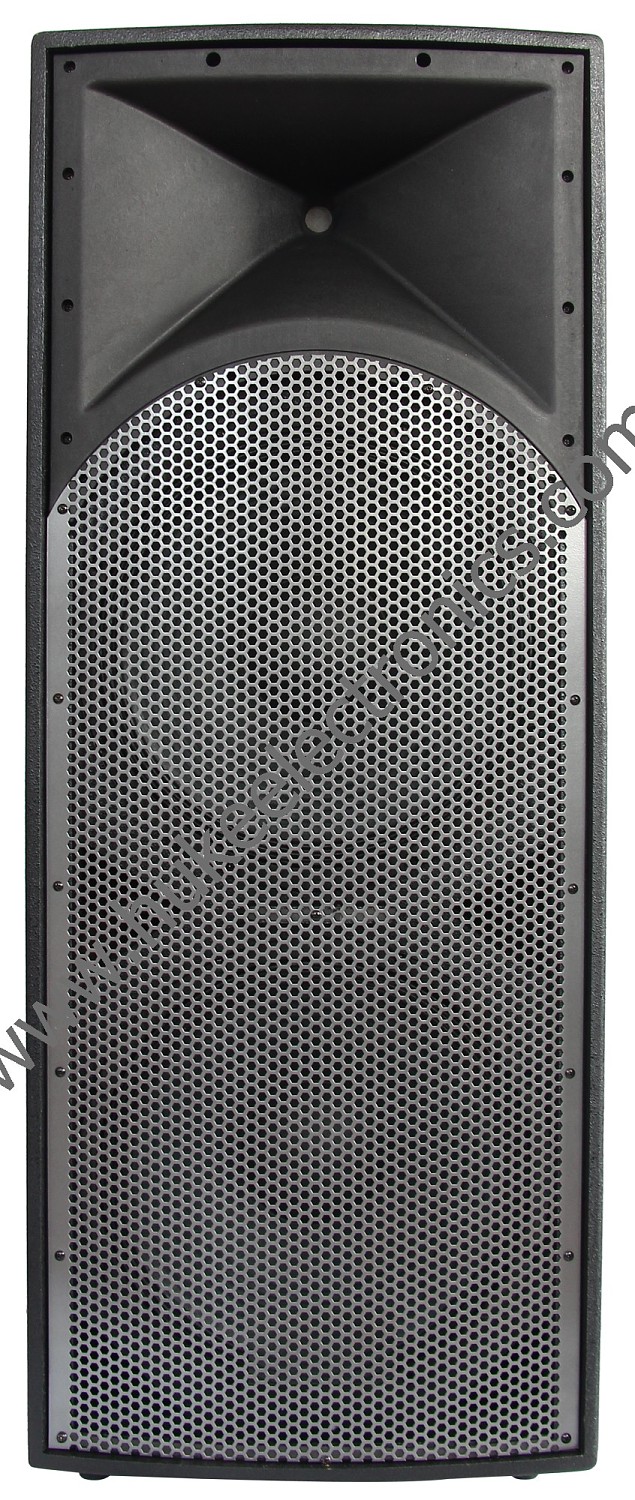

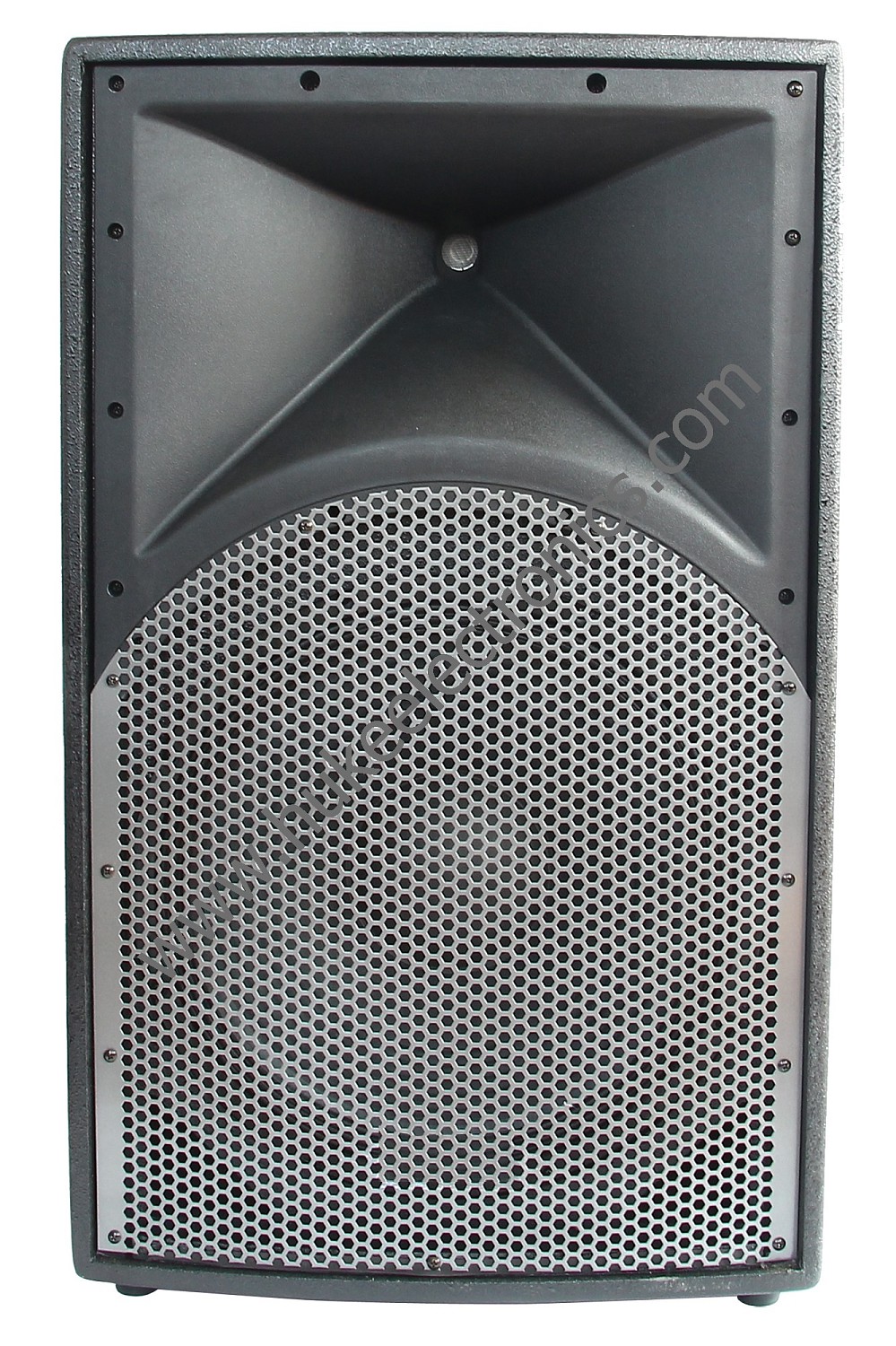

WQ Serie
Features :
WQ serie is two-way speaker system based on a heavy duty woofer and a titanium compression driver mounted on a constant-directivity horn
MDF wood with paing finish trapezoidal enclosure with stand-mount cup facilitates portable use for excellent live music or speech sound reinforcement, as well as music playback
Silver powder-coated steel grille provides driver protection
| Specifications | ||
| Model: | WQ-12 | WQ-15 |
| System type | 12"2 Way | 15"2 Way |
| Power handling | 250W ,500W PEAK | 300W ,600W PEAK |
| LF woofer | 12"with 2.5" voice coil | 15"with 3" voice coil |
| HF driver | 1.35" Titanium | 1.75" Titanium |
| Frequency response | 55-20 KHz | 45-20 KHz |
| Impedance | 8 Ohm | 8 Ohm |
| Sensitivity | 96dB | 98dB |
| Connectors | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack |
| Dimension(W*L*H) | 38*37*65 CM | 43*46*85 CM |
| Weight: | 19 KGS | 24 KGS |
| Model: | WQ-215 | WQ-18S |
| System type | Dual 15"2 Way | 18" Subwoofer |
| Power handling | 600W ,1200W PEAK | 500W ,1000W PEAK |
| LF woofer | 2*15"with 3" voice coil | 18" with 4" voice coil |
| HF driver | 1.75" Titanium | |
| Frequency response | 40-20 KHz | 38-650 Hz |
| Impedance | 4 Ohm | 8 Ohm |
| Sensitivity | 99dB | 100dB |
| Connectors | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack |
| Dimension(W*L*H) | 43*46*130 CM | 56*58*68 CM |
| Weight: | 38 KGS | 36 KGS |
