Home>>SPEAKER CABINET>>Wooden Speaker Cabinet

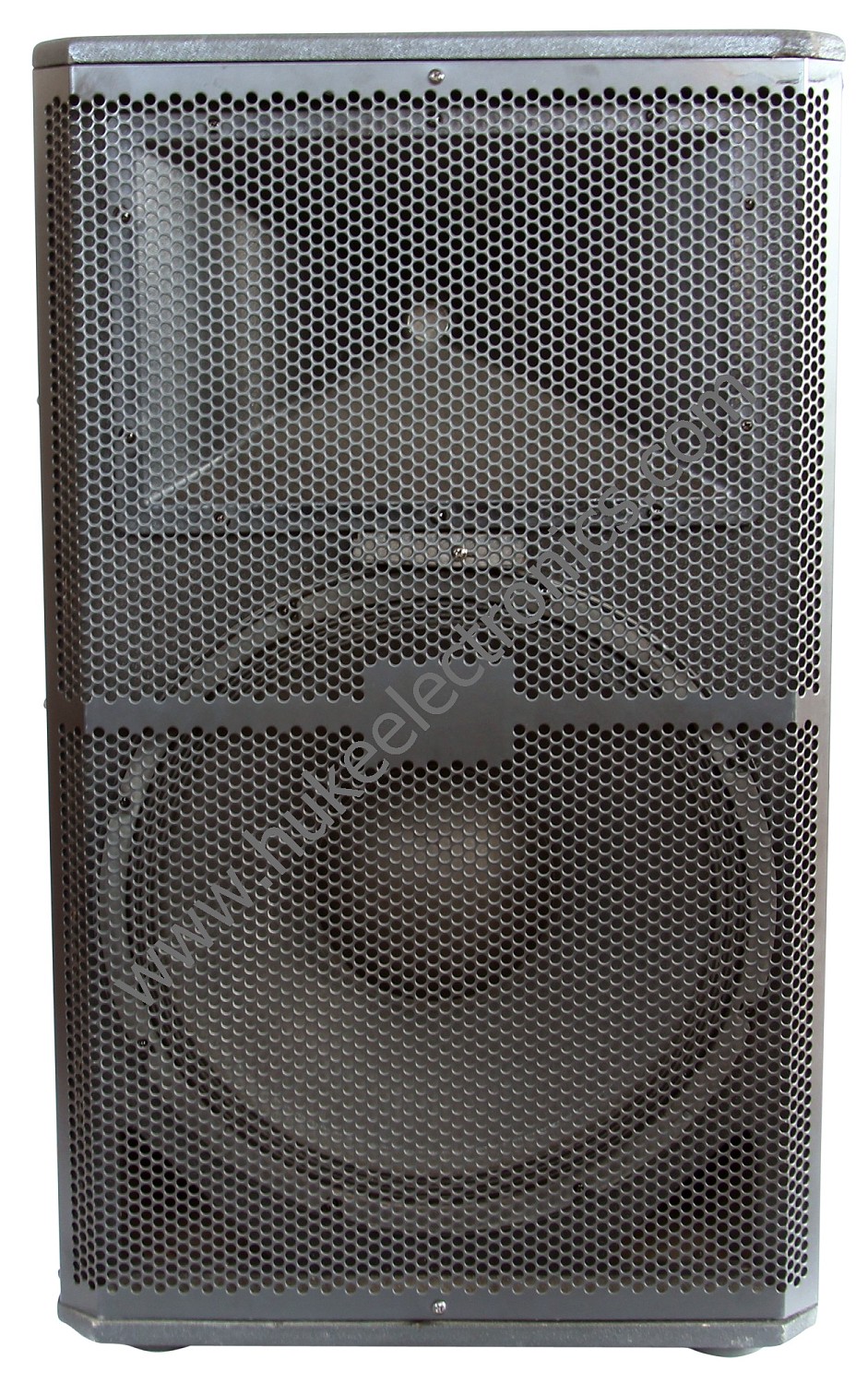

WJ Serie
Features :
WJ serie is high qualified two-way speaker system based on a heavy duty die cast frame woofer and a titanium compression driver mounted on a constant-directivity horn.
Aluminum flat wire for higher sensitivity & high level die-cast frame for very high power
MDF wood with paing finish trapezoidal enclosure with stand-mount cup facilitates portable use for perfect live music or speech sound reinforcement, as well as music playback
Black powder-coated steel grille provides driver protection
| Specifications: | |||
| Model: | WJ-12M | WJ-15 | WJ-215 |
| System type: | 12"2 Way monitor | 15"2 Way | Dual 15"2 Way |
| Power handling: | 300W ,600W PEAK | 400W ,800W PEAK | 600W ,1200W PEAK |
| LF woofer: | 12"with 3" voice coil | 15"with 4" voice coil | 2*15"with 4" voice coil |
| HF driver: | 1.75" Titanium | 1.75" Titanium | 2" Titanium |
| Frequency response: | 45-20 KHz | 40-20 KHz | 40-20 KHz |
| Impedance: | 8 Ohm | 8 Ohm | 4 Ohm |
| Sensitivity: | 97dB | 99dB | 101dB |
| Connectors: | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack |
| Dimension(W*L*H): | 37*33*59 CM | 46*45*78 CM | 56*54*130 CM |
| Weight: | 19 KGS | 26 KGS | 42 KGS |
| Model: | WJ-18S | WJ-218S |
| System type: | 18" Subwoofer | Dual 18" Subwoofer |
| Power handling: | 600W ,1000W PEAK | 1200W 2500W PEAK |
| LF woofer: | 18" with 4" voice coil | 2*18" with 4" voice coil |
| HF driver: | ||
| Frequency response: | 38-700 Hz | 38-700 Hz |
| Impedance: | 8 Ohm | 8 Ohm |
| Sensitivity: | 102dB | 103dB |
| Connectors: | 2 *Speakon & 2*1/4 Jack | 2 *Speakon & 2*1/4 Jack |
| Dimension(W*L*H): | 63*53*67 CM | 66*122*73 CM |
| Weight: | 34 KGS | 77 KGS |
