Home>>SPEAKER CABINET>>Moulded Speaker Cabinet

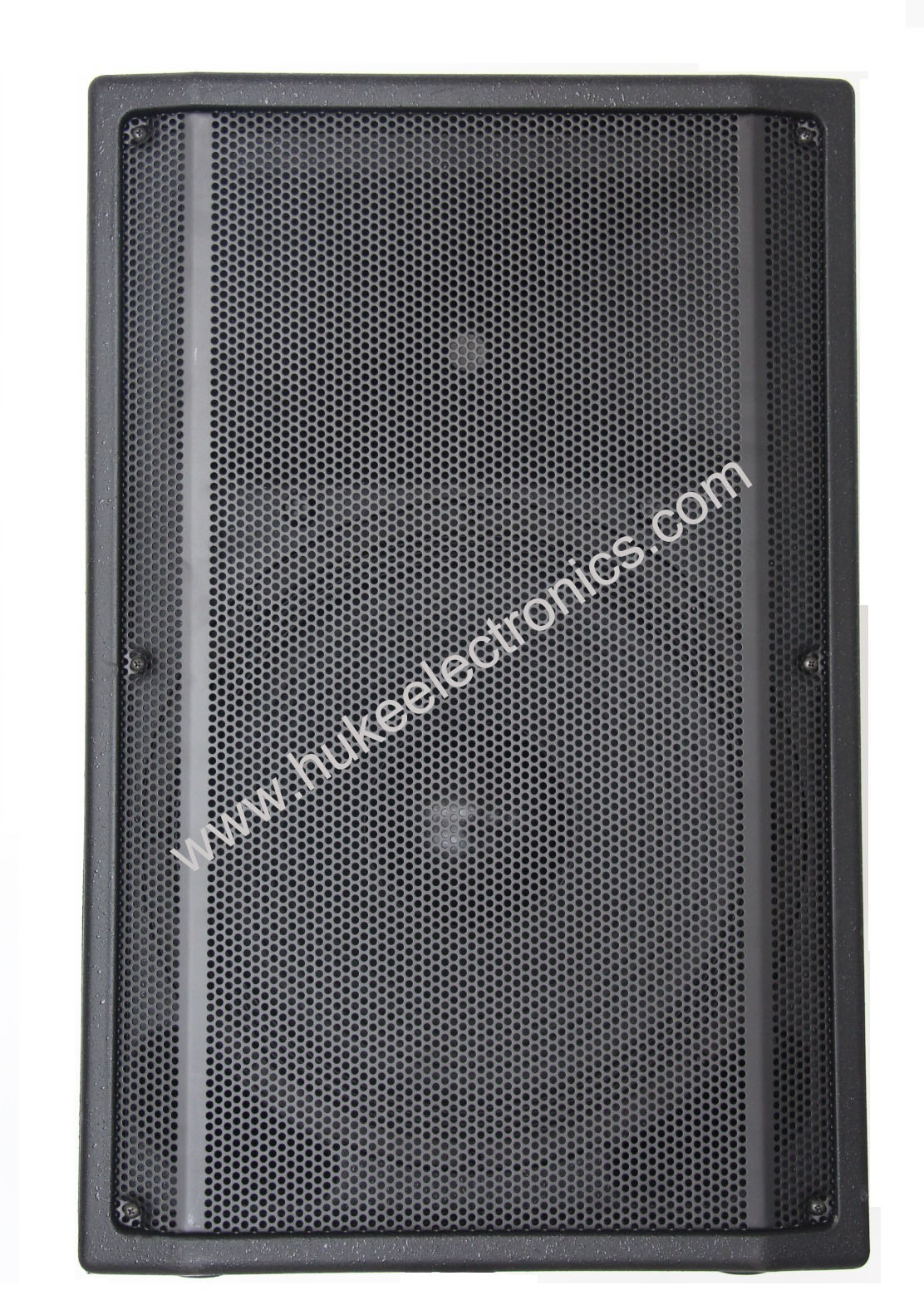

PU Serie
Features :
PU serie is high qualified two-way molded speaker system based on a heavy duty woofer and a titanium compression driver.
Speaker mounting pole socket.
Other public speaking applications.
| Specifications: |
|
||
| Model: | PU-15 | PU-15AU | |
| System type: | 15" 2 Way passive | 15" 2 Way active | |
| Power handling: | 250W ,500W PEAK | 250W ,500W PEAK | |
| LF woofer: | 15" with 2.5" kapton voice coil 50 OZ magnet | 15" with 2.5" kapton voice coil 50 OZ magnet | |
| HF driver : | 1.75" Titanium | 1.75" Titanium | |
| Frequency response: | 40 Hz-18 KHz | 40 Hz-18 KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 98 dB | 98 dB | |
| Amplifier module: | 250W RMS DIGITAL AMP | ||

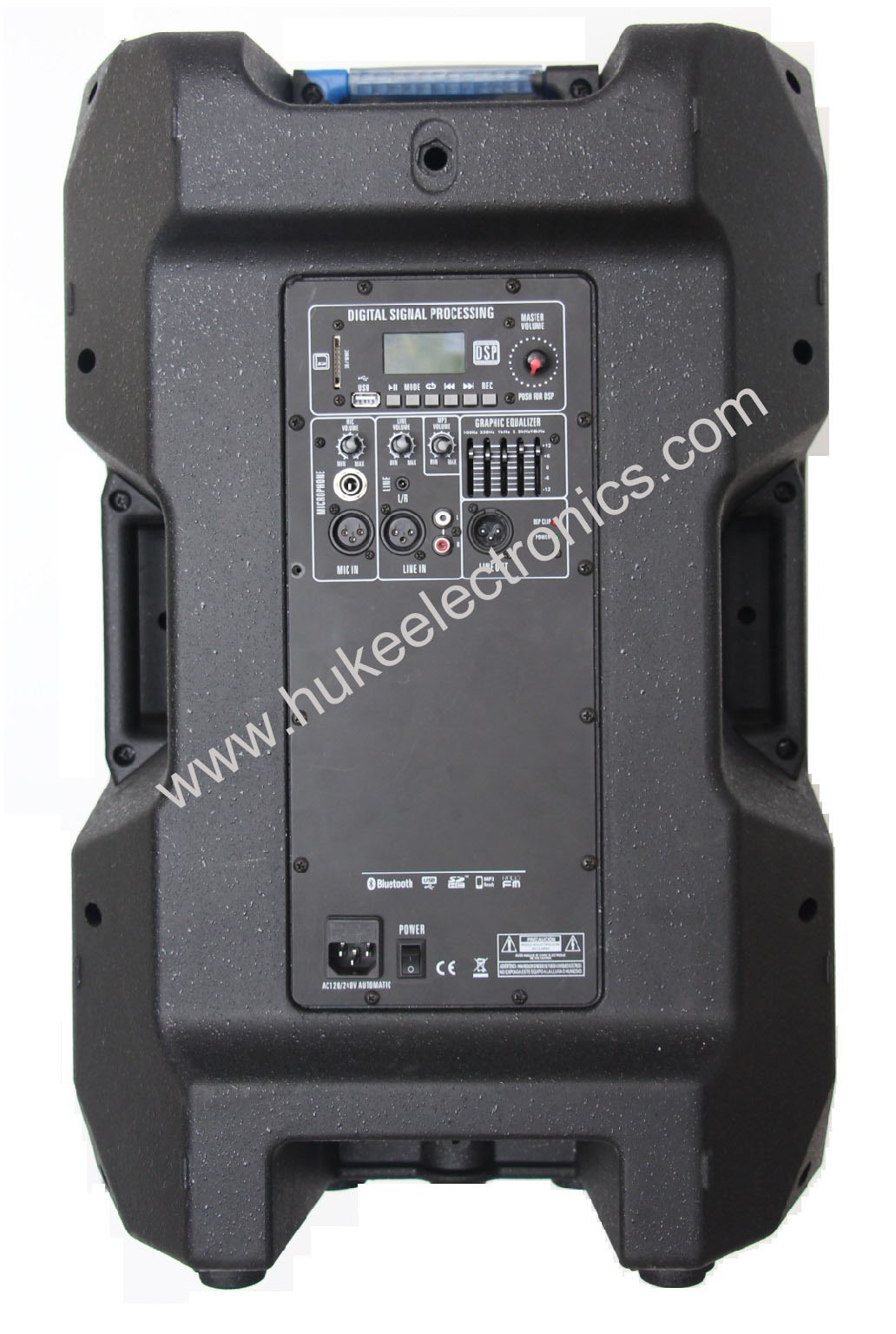

| Functions: |
MP3 player,DSP,SD card input,Bluetooth,FM radio, 5 BAND EQ.Remote controller |
||
| Connecors: | 2* Speakon | Dual RCA line & XLR MIC input,XLR & 1/4 JACK Line output | |
| Dimension(W*L*H): | 48.5*42*74 CM | 48.5*42*74 CM | |
| Weight: | 19 KGS | 21 KGS |
