Home>>SPEAKER CABINET>>Moulded Speaker Cabinet
PD Serie
Features :

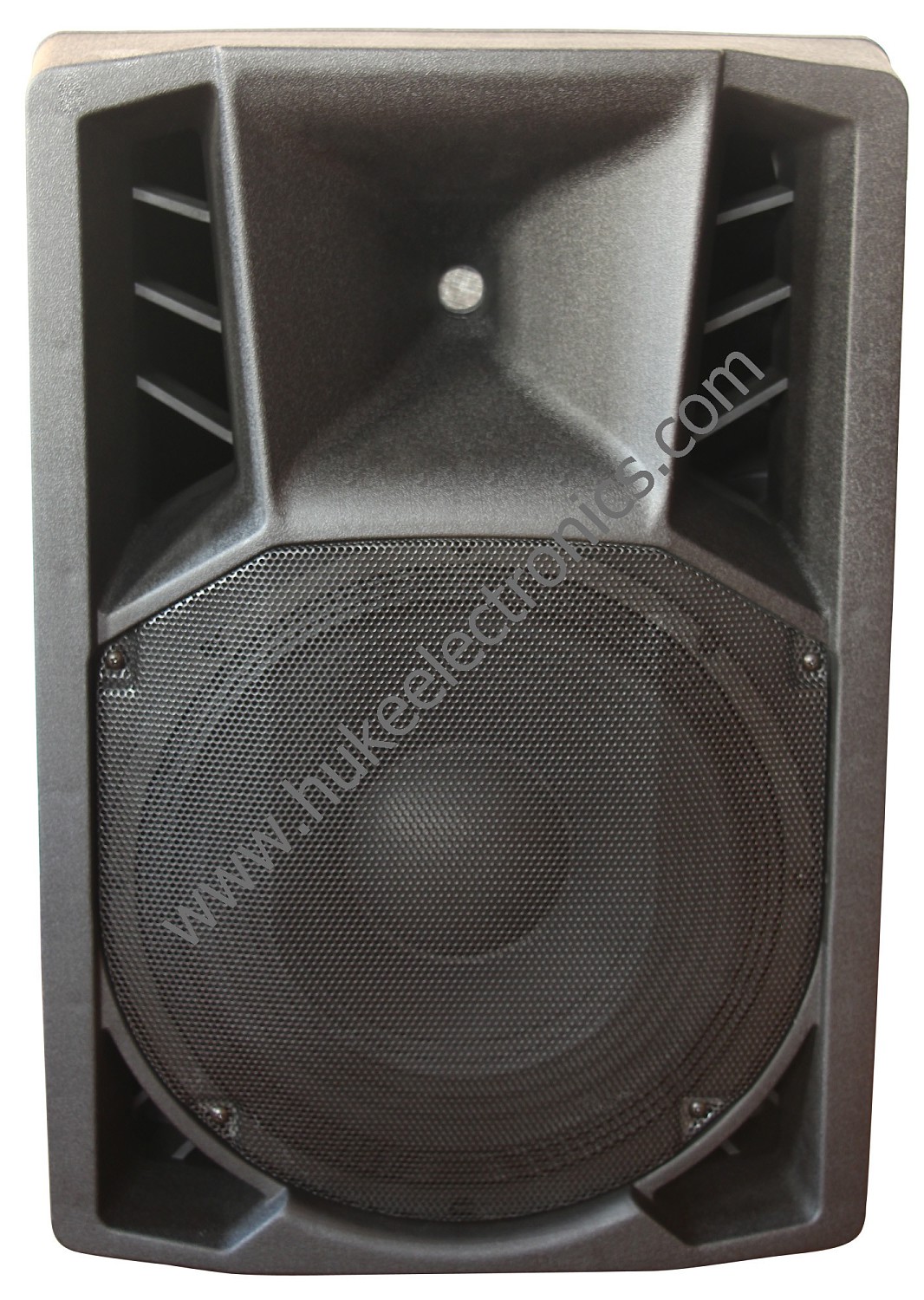

The PD serie is high qualified two-way molded speaker system based on a heavy duty woofer and a titanium compression driver .
Handlers at side with speaker mounting pole socket and wheels
Ideal solution for Installation DJ ,clubs and other public speaking applications .
| Specifications: | |||
| Model: | PD-12 | PD-12A | |
| System type: | 12" 2 Way passive | 12" 2 Way passive | |
| Power handling: | 200W,400W PEAK | 200W,400W PEAK | |
| LF woofer: | 12" with 2.5" kapton voice coil, 50 OZ magnet | 12" with 2.5" kapton voice coil, 50 OZ magnet | |
| HF driver: | 1.35" Titanium | 1.35" Titanium | |
| Frequency response: | 50Hz-18KHz | 50Hz-18KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 95dB | 95dB | |
| Amplifier module: | 200W RMS Analog | ||

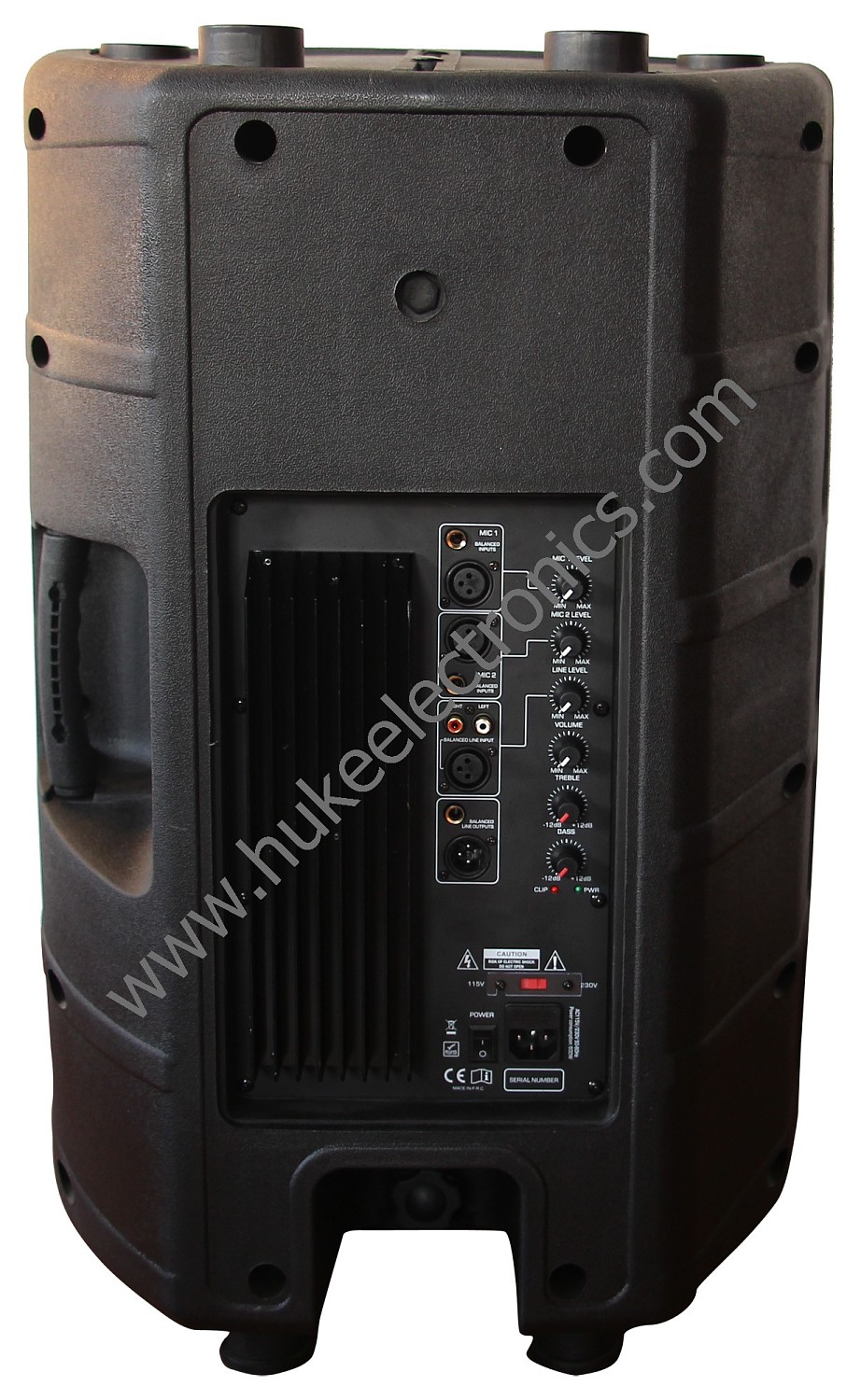

| Connecors: | 2*Speakon | Dual RCA line & XLR line input , Dual XLR .1/4 Jack MIC inputs & 1/4 Jack & Canon output | |
| Dimension(W*L*H): | 46*37*64 CM | 46*37*64 CM | |
| Weight: | 15 KGS | 17 KGS | |
| Model: | PD-15 | PD-15A | |
| System type: | 15" 2 Way passive | 15" 2 Way active | |
| Power handling: | 250W ,500W PEAK | 250W ,500W PEAK | |
| LF woofer: | 15" with 3" kapton voice coil , 60 OZ magnet | 15" with 3" kapton voice coil , 60 OZ magnet | |
| HF driver: | 1.75" Titanium | 1.75" Titanium | |
| Frequency response: | 40 Hz-18 KHz | 40 Hz-18 KHz | |
| Impedance: | 8 Ohm | 4 Ohm | |
| Sensitivity: | 98 dB | 98 dB | |
| Amplifier module: | 250W RMS Analog | ||
| Connecors: | 2* Speakon | Dual RCA line & XLR line input , Dual XLR .1/4 Jack MIC inputs & 1/4 Jack & Canon output | |
| Dimension(W*L*H): | 50.5*46*75 CM | 50.5*46*75 CM | |
| Weight: | 20 KGS | 22 KGS |
